Future mobility / Premium rail experience

ONTRA

An adaptable rail suite
for work, rest and collaboration.

2026 · 6 monthsIndustrial design / Jeff YapTeam project · Future rail concept
01 / The premise

Mobility as a third space.

Digital nomadism and location-flexible work invite a different view of travel: the journey can become part of everyday life.

The future of productivity
= adaptability.

As work becomes less tied to one location, travel can become a third space for focus, recovery and connection.

Set within a future Pan-Asia rail scenario linking mainland Southeast Asia and southern China, ONTRA explores a personal suite that adapts as intentions change.

02 / One suite · Three modes

A physical shift. A change of mindset.

ONTRA’s 60° seat rotation makes the transition from work to rest tangible. It requires more space than a fixed seat, but the change in orientation aims to create a mental boundary between focus and relaxation—balancing spatial efficiency with psychological comfort. An adjustable separator makes collaboration a choice.

Switch between Work and Rest
Surface + orientation

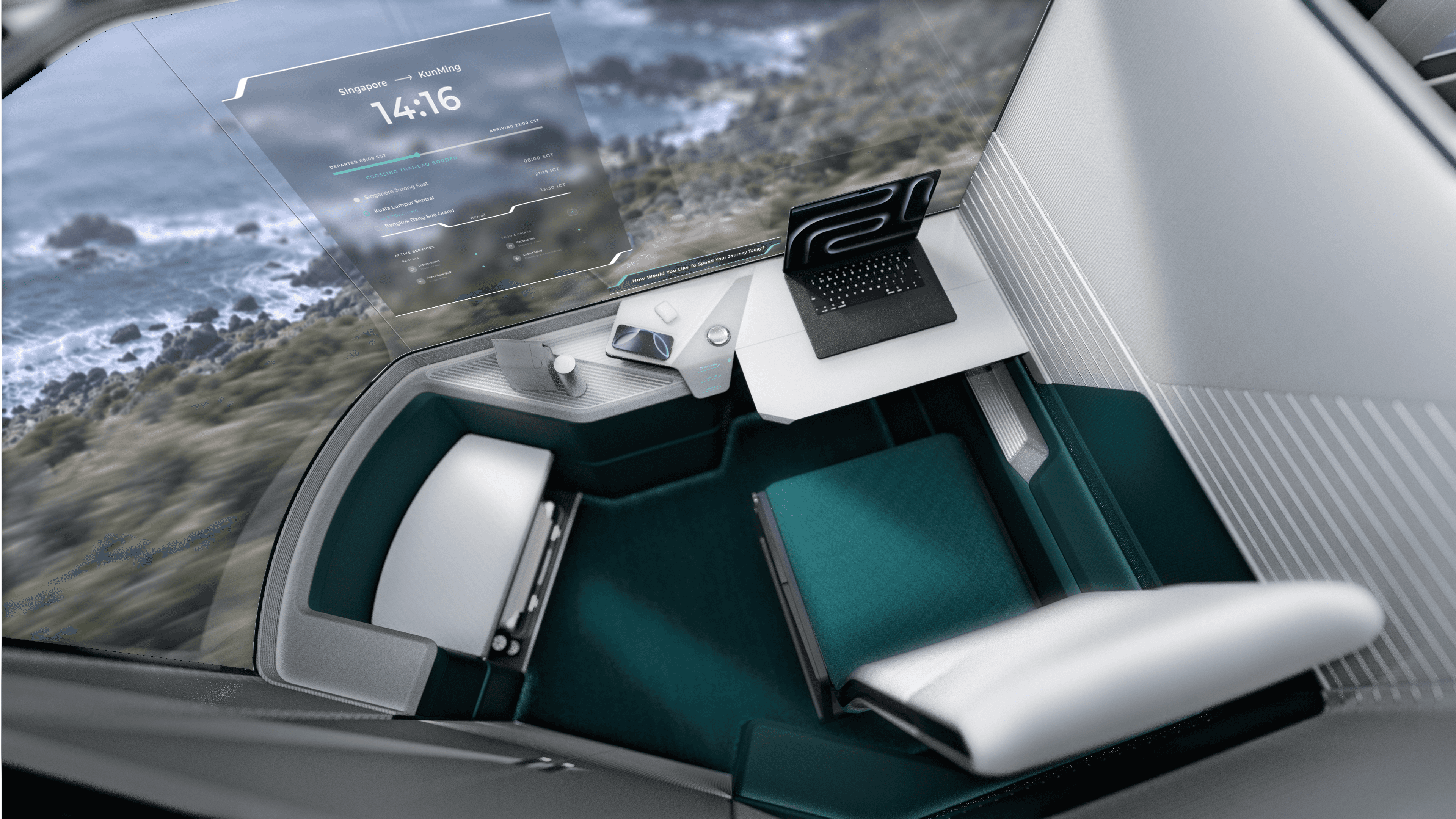

Room to find your focus.

Bring the surface, personal device and panoramic interface into one field of attention. A defined personal territory supports focused work and shorter tasks within the same footprint.

The working surface gathers devices and everyday belongings around an upright posture.

Collaboration Mode

Make room for shared attention.

The panoramic interface gives conversations and shared content a larger presence within the suite. Together with the opening partition explored in the layout studies, collaboration becomes a choice alongside individual work and rest.

Fully lowered / An open boundary for shared activity.

Privacy at the height you need.

The separator can be fully raised to close the boundary, partially lowered to open a shared view, or completely lowered to connect the adjacent spaces. Passengers can adjust the degree of separation to suit focused work, conversation or shared activity.

The 60° rotation and sliding partition appear in the concept development. Movement, clearance and control behaviour remain design proposals.

03 / Ergonomics & functional zoning

A place for every action.

The layout separates work, devices, controls and personal belongings. These reach studies explore what remains accessible as the passenger turns from work toward rest.

Work postureRest posture

Solid / left arm · Dashed / right arm · Darker overlap / shared coverage

Illustrative reach study. Body dimensions, surface heights and obstruction clearances remain to be validated.

01

Work surface

Frequent tasks sit in front of the passenger, within the intended comfortable reach area.

02

Devices & charging

A separate side surface keeps personal electronics close and the main work area available.

03

Controls across modes

The inclined console is intended to remain accessible in both postures. Its angle distinguishes controls from surfaces used to set down objects.

04

Personal storage

Wallets, bottles and snacks have a dedicated place, separate from work and controls.

Change posture. Keep essentials close.

The design intent is continuity: the main surface changes with the activity, while devices, controls and belongings retain a predictable place. The full-scale mock-ups later in the study explore these relationships at human scale.

04 / Cabin configurations

Choice at the scale of the cabin.

ONTRA extends adaptability from the individual suite to the cabin layout. Two suite types can be arranged across both sides of the aisle, or paired with shared seating in an alternative configuration.

A family of suites

Two suite types.

ONTRA Pivot brings Work, Rest and Collaboration together. Its 60° seat rotation gives the transition a physical expression, prioritising a perceptible change of setting alongside spatial efficiency.

ONTRA Compact retains the suite concept with a fixed seat and omits Rest Mode. It does not require the rotational movement envelope; capacity and space savings have not been quantified.

Two ways to arrange the cabin.

Layout A / Suite cabin

ONTRA Pivot and ONTRA Compact occupy both sides of the central aisle, offering individual spaces within a consistent cabin arrangement.

Suite cabin / Individual spaces on both sides of the aisle.
Cabin planONTRA Pivot · ONTRA Compact · Central aisle

Alternative cabin planning proposals. Seating capacity and operational performance have not been evaluated.

05 / Physical interaction

Details within reach.

Physical controls and seating details give adjustment a tangible place in the suite. The seat and workspace controls sit within reach, while the occupied view and headrest study show how those details meet the passenger.

Seat-side adjustment / A tactile control integrated beside the seat.
Workspace console / Devices and controls grouped beside the main surface.
Occupied suite / The seat and surrounding surfaces in use.
Headrest study / Speaker modules could sit beneath the headrest; placement and acoustics remain exploratory.
06 / Working at full scale

From a line on the floor to an occupied space.

Tape, loose furniture and cardboard made the spatial questions tangible. The mock-ups show how a person, a laptop and everyday belongings occupy different arrangements before the proposal is resolved in detail.

SPACE MOCK-UP

Spatial mock-ups / Work, shared seating and rest arrangements explored at human scale.

OCCUPIED PROTOTYPE

07 / Design development

From research to spatial decisions.

A scan of travel, work and hospitality trends led to one question: how can a personal rail space adapt as passengers change activities? Rail precedents then helped translate that opportunity into spatial criteria.

Four converging drivers

Lower-carbon mobility

Rail provided the context for exploring productive travel.

Location-independent work

Work can move beyond the office and into the journey.

Blending work and leisure

A single trip may call for focus, recovery and connection.

Adaptive environments

Personal spaces should respond when activities change.

Opportunity

The future of productivity
= adaptability.

The opportunity is to connect activities within one adaptable personal space. Passengers should be able to change posture, task and degree of privacy while keeping their essentials close.

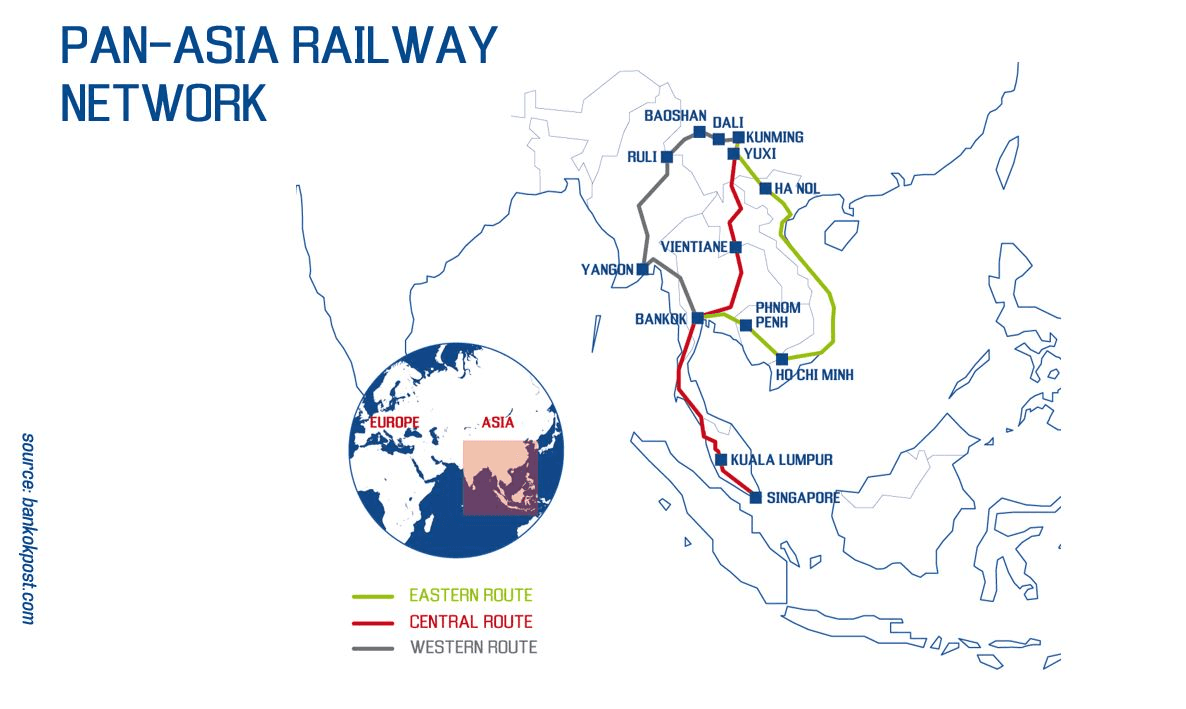

Future Pan-Asia rail

A future mainland Southeast Asia–southern China scenario. Longer cross-border journeys create an opportunity to make time between destinations part of everyday life.

Geographic reference for the concept; not a claim of an operational network or confirmed completion date.

Market positioning

Qualitative positioning from the project research. ONTRA explores the opportunity to connect activities within one adaptable personal space.

Qualitative positioning by quadrant — upper-left: Train Suite Shiki-shima, Dreamstar, Rocky Mountaineer; upper-right: TGV inOui and ONTRA opportunity; lower-left: Amtrak and ÖBB Nightjet; lower-right: Eurostar and JR East.

Precedents → spatial criteria

Translating references into design criteria.

Rail precedents informed three spatial priorities for ONTRA.

Eurostar Premier

A table is only a start.

The reference supports laptop use. ONTRA expands the workspace to include devices, belongings and movement.

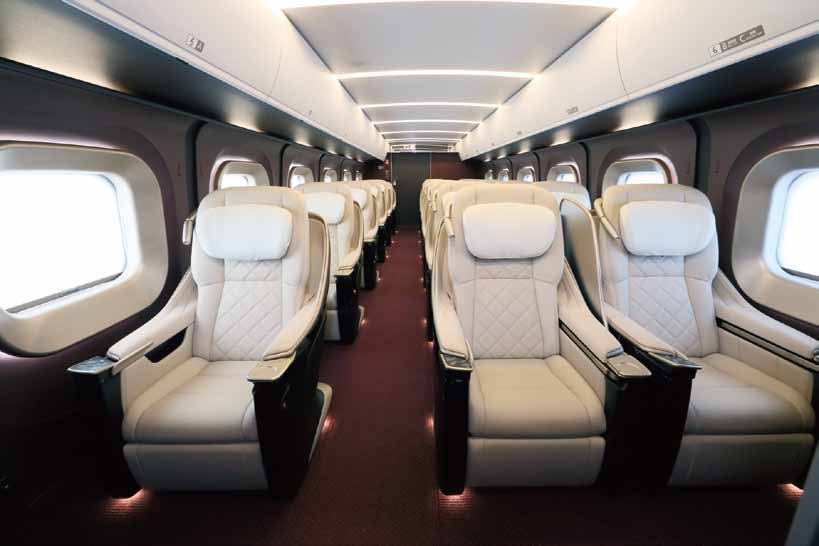

JR East GranClass

Different activities need different postures.

Reclining seating prioritises comfort. ONTRA coordinates seat orientation with the task surface.

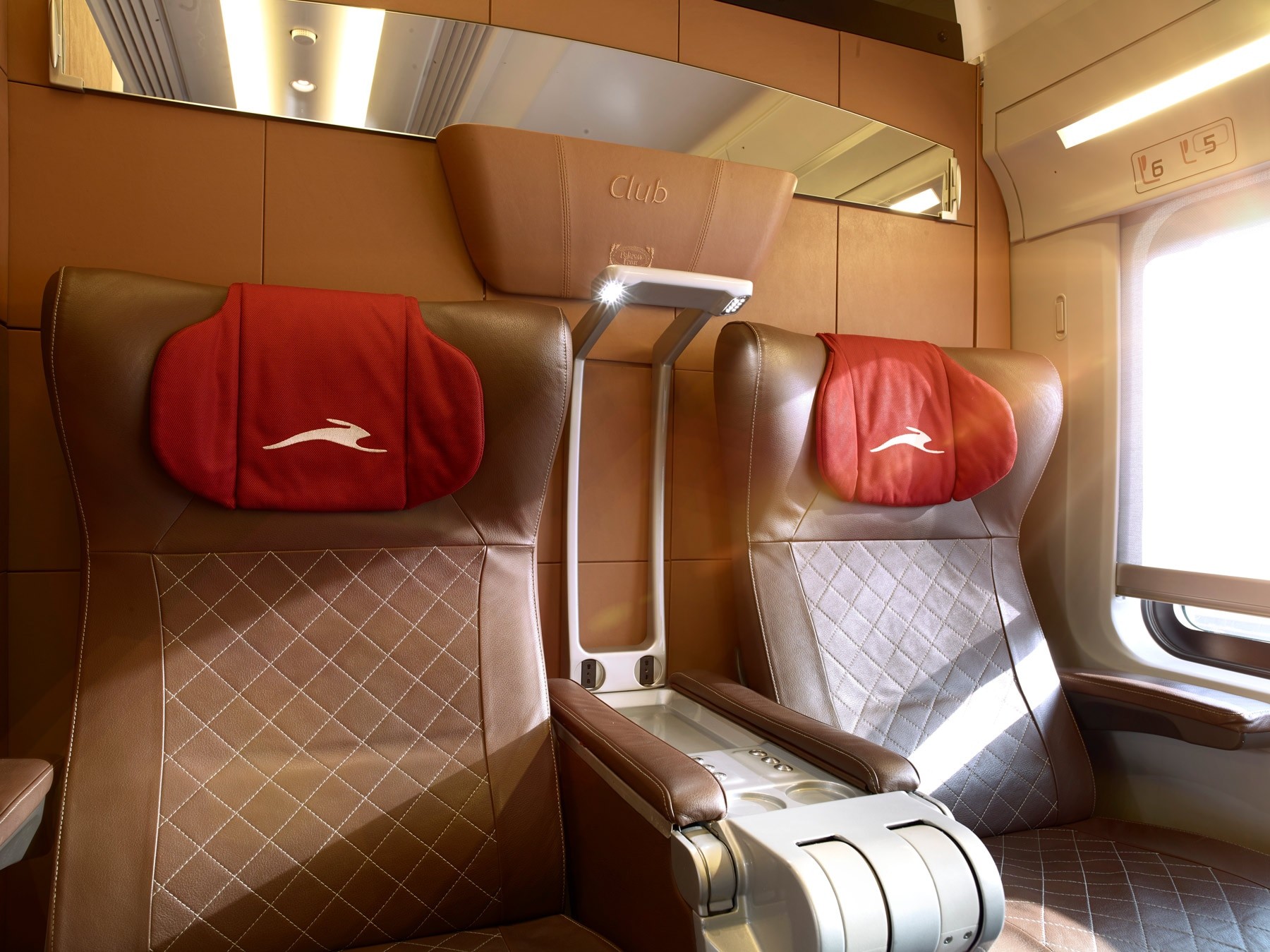

Italo Salotto

Sharing should remain a choice.

A group compartment supports meeting and conversation. ONTRA explores connection while preserving each passenger’s personal space.

Design direction / Coordinate posture and surfaces, keep essentials accessible, and let passengers choose privacy or connection.

Framing the experience.

Early reference gathering and affinity mapping informed the passenger archetypes and the direction of the concept.

Research / Signals, references and passenger experiences.
Synthesis / Exploring directions and grouping recurring themes.

Passenger priorities shaped the brief.

Three passenger archetypes span early adopters, the early majority and the late majority. Their different priorities informed privacy, connection by choice, and a clear transition between work and rest. The paired images below are visual references from the project’s user-needs board, showing desired situations rather than results from testing the suite.

Playful productivity
Social discovery
Discovery & connection

Experience Seeker

Early adopters

Values spontaneity, memorable experiences and playful productivity. Social contact should be easy to enter—and easy to leave.

Design response

Opening boundaries and shared displays make collaboration a choice within the journey.

Focused work
Rapid recovery
Focus & recovery

Hybrid Professional

Early majority

Needs deep productivity, trusted personal territory and privacy, with the ability to recover between demanding tasks.

Design response

A defined suite, a purposeful work orientation and a distinct rest posture support those shifts.

Short work bursts
Leisure as reward
A clear change of pace

Bleisure Traveler

Late majority

Moves between short work sessions and leisure. Belongings stay close, while a change of setting helps mark a task as finished.

Design response

Seat rotation, changing surfaces and accessible storage let the same footprint serve different intentions.

How can the suite make a change of mindset tangible?

Focus, recovery and connection are not separate passenger types or fixed moments. They can follow one another in a single journey, so the suite needs to change with the activity.

These are design responses to the stated needs, not validated mechanisms. ONTRA Compact keeps a fixed seat and omits Rest Mode; movement and clearances of the Pivot remain to be tested.

Exploring the suite.

Seat, surface and enclosure were explored together. Select an image to inspect the original study.

Early concepts / Seats, surfaces and personal territory.

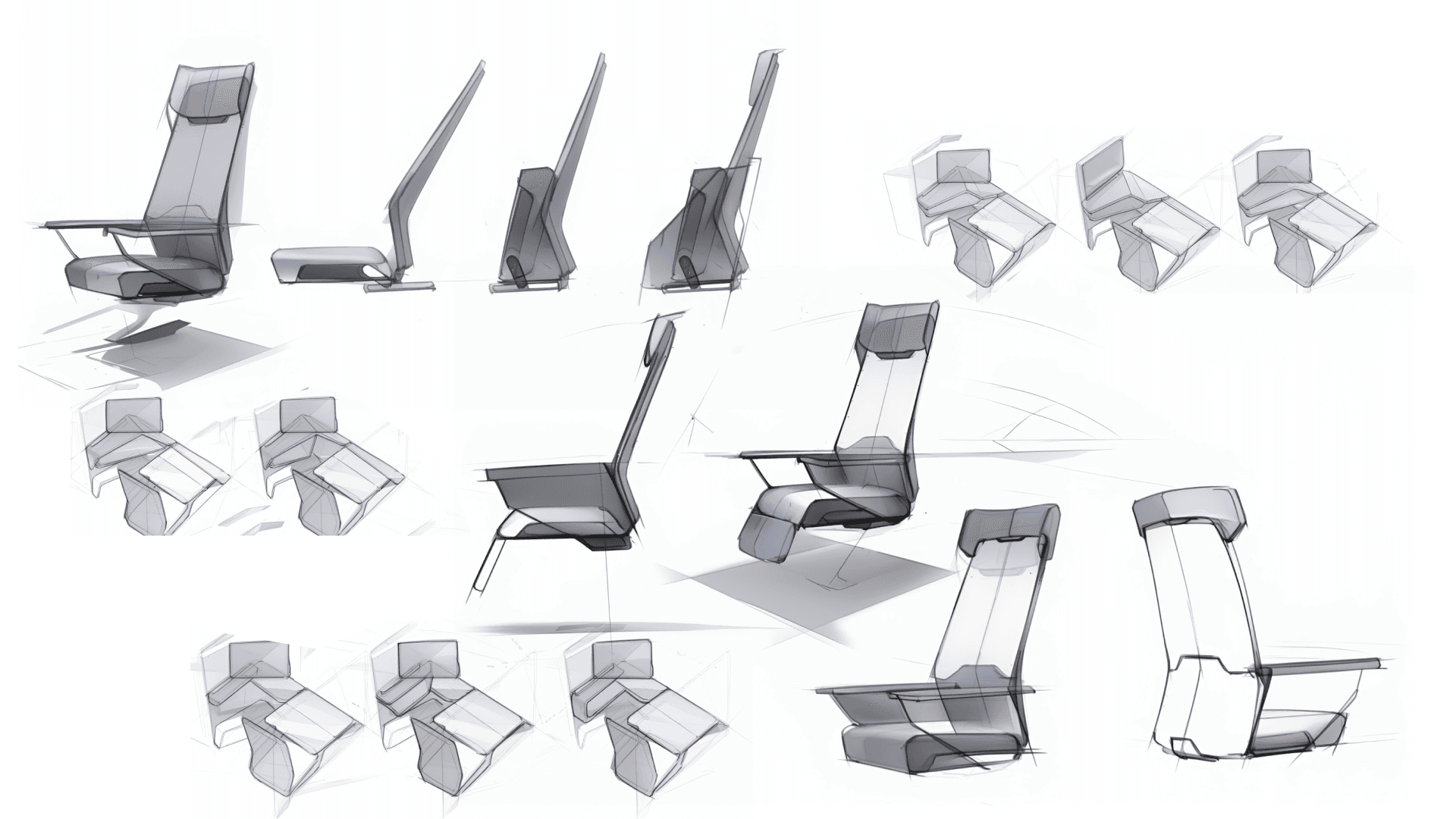

Seat development / Profile, support and posture.
Suite development / Enclosure and working surface.

Connecting suite and cabin.

Plan studies explored the 60° seat rotation, folding and sliding surfaces, opening partition, and arrangements for focus, collaboration and restoration across the cabin.

Suite layouts / Orientation, entry and opening boundaries.
Cabin zoning / Focus, collaboration and restoration.
Cabin configurations / Comparing focus and flow.

Developing the suite in detail.

Past mid-to-high-fidelity versions brought the seat, work surface and enclosure into a more resolved visual form. These studies record the design's development before the current proposal.

Earlier suite iteration / Seat form, side controls and enclosure explored together.
Earlier suite iteration / Work surfaces, partition and seated relationships developed at suite scale.
ONTRA

Time in transit.
Time of your own.

Industrial design

Jeff Yap

Branding design

Mika Hu

UI design

Daniel Gu

2026 · 6 months

Team concept project

Working imagery · Final renders in development.
